Light Duty Conveyor Belt Splicer For Food & Beverage Factory

Ask Lasest Price
Brand Name :	RUNNING
Model Number :	*ZLJ-1400830**
Certification :	CE
Price :	$9500 ~ $ 10500 / set
Payment Terms :	T/T, L/C
Supply Ability :	50sets/month
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

Light Duty Conveyor Belt Splicer For Food & Beverage Factory

Light Duty Conveyor Belt Splicer For Food & Beverage Factory

Conveyor Belt Splicer For the vulcanization and splicing of nylon conveyor belt, ep conveyor belt, steel cord belt.

Specification of conveyor belt splicer

(Model: ZLJ-1400×830mm)

No.	Description	B=1400mm	Remarks
1	Rubber Conveyor Belt Vulcanizing Press	1 set
2	Model	ZLJ-1400x830mm
3	Belt Width	14 00mm
4	Working Pressure Range of Vulcanizing (Mpa)	1.0-3.0 Mpa(adjustable)
5	Working Temperature	145ºC
6	Temperature Difference of Platen Surface (ºC)	±2ºC
7	Temperature Rising Time (Normal temperature to145ºC)	≤20min
8	Temperature Adjustable Range (ºC)	0-200ºC
9	Timing Adjustable Range	0-99min
10	Appearance Size	1930x830x760mm
11	Single-machine Weight	1100kg
12	Voltage	220V or as per customer's request
13	Working Pressure	0---1.8 MPa
14	Power	18.6kw
15	Optional Accessories	With belt clamping device
16	Beam	10 groups of 250mm beam

Application:

Conveyor belt joint splicer is used for joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt. It is suitable for jointing in these fields: metallurgy, chemical industry, metal mining, power plant, ports, docks. Jointed surface is smooth, and it can reduce abrasive and make conveyor belt to work for long time, cost savings. It is one of leading classic heavyweight belt sectional vulcanizing press.

ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt. The main configuration of a single vulcanizing machine is as following:

Name	Amount
Host machine	1 set
Ratchet wrench	2 piece
steel pad	1 set
Clamping device	1 set
Electric control box	1 set
Power cable	1 root
Control cable	2 root
Thermal resistance	2 pieces
QL electric water pump	1 set
SD Hand pressure pump (Optional)	1 set
Pressure pipe	2 root
Water cooling system (Optional)	1 set

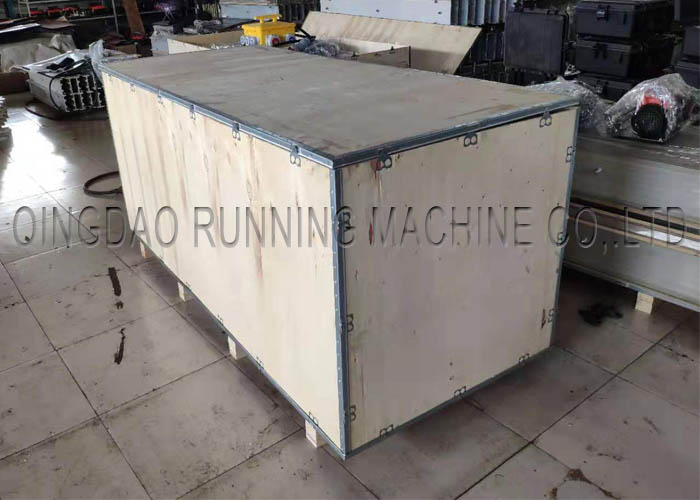

Shipping package of conveyor belt splicer

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
