Portable PU Rubber Belt Vulcanizing Machine Hydraulic Press

Ask Lasest Price
Brand Name :	RUNNING
Model Number :	RVP-1000
Certification :	ISO CE SGS
Price :	USD 7999 / SET
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	50 SETS/M
Delivery Time :	7DAYS

Add to Cart

Product Details
Company Profile

Portable PU Rubber Belt Vulcanizing Machine Hydraulic Press

Introduction of Rubber Belt Vulcanizing Machine

1. Rubber Belt Vulcanizing Machine PC or manual control, with reliable performance and high degree of automation. It can automatically identify wrong commands and avoid accidents caused by wrong operations.

2. The pre-programmed process program can be locked, so that the operator cannot change it without authorization, so as to ensure the quality of the pressed product. 3. It has the functions of timing mold opening, automatic degassing, automatic pressure supplementation.

Parameters of Rubber Belt Vulcanizing Machine

Specifications of RVP series Belt Joint Vulcanizing Machine 100 PSI(7kg/cm sq.) units suitable for splicing steelcord conveyor belting
Model Number		Max Belt Width(in)		Platen Dimensions						Max Splice Length		Spanner Bars				Qty Bolt/Nut Assy.	Main Component Weights
		Max Belt Width(in)		A(mm)		B(mm)		C(mm)		Max Splice Length		QTY	Type	Length			Platen	Bar	Bolt/ Nut Assy.	Total Weight
		in	mm	in	mm	in	mm	in	mm	in	mm	QTY	Type	in	mm		kg	kg	kg	kg
RVP	1930	24	610	19	480	30	760	28	705	13	330	2 sets	EA	42	1065	4	25	24	8	225
RVP	1937	30	760	19	480	37	940	34	870	13	330	2 sets	EA	49	1245	4	31	28	8	255
RVP	1943	36	915	19	480	43	1090	40	1015	13	330	2 sets	EA	55	1395	4	36	31	8	281
RVP	2643	36	915	26	660	43	1090	40	1015	20	510	3 sets	EA	55	1397	6	49	31	8	405
RVP	2843	36	915	28	710	43	1090	40	1015	22	560	3 sets	EA	55	1397	6	53	31	8	416
RVP	3343	36	915	33	840	43	1090	40	1015	27	685	4 sets	EA	55	1397	8	62	31	8	522
RVP	3743	36	915	37	940	43	1090	40	1015	31	785	4 sets	EA	55	1397	8	70	31	8	544
RVP	1950	42	1065	19	480	50	1270	46	1175	13	330	2 sets	EA	62	1574	4	42	35	8	311
RVP	2850	42	1065	28	710	50	1270	46	1180	22	560	3 sets	EA	62	1574	6	61	35	8	461
RVP	3350	42	1065	33	840	50	1270	46	1180	27	685	4 sets	EA	62	1574	8	72	35	8	579
RVP	4250	42	1065	42	1065	50	1270	46	1180	36	915	5 sets	EA	62	1574	10	92	35	8	722
RVP	2856	48	1220	28	710	56	1420	52	1320	13	330	2 sets	EA	68	1727	4	47	38	8	336
RVP	3756	48	1220	37	940	56	1420	52	1320	22	560	3 sets	EA	68	1727	6	69	38	8	499
RVP	4256	48	1220	42	1065	56	1420	52	1320	31	785	4sets	EA	68	1727	8	91	38	8	655
RVP	2656	48	1220	26	660	56	1420	52	1320	36	915	5 sets	EA	68	1727	10	103	38	8	783
RVP	3358	48	1220	33	840	58	1475	54	1370	20	510	3 sets	EA	70	1778	6	66	39	8	498
RVP	3758	48	1220	37	940	58	1475	54	1370	27	686	4 sets	EA	70	1778	8	84	39	8	643
RVP	4558	48	1220	45	1140	58	1475	54	1370	31	785	4 sets	EA	70	1778	8	94	39	8	672
RVP	2858	48	1220	28	710	58	1475	54	1370	39	990	5 sets	EA	70	1778	10	114	39	8	824
RVP	2862	54	1370	28	840	62	1575	57	1460	22	560	3 sets	EA	74	1879	6	76	42	8	538
RVP	3365	54	1370	33	915	65	1650	60	1530	27	685	4 sets	EA	77	1955	8	94	43	8	700
RVP	3665	54	1370	36	1015	65	1650	60	1530	30	760	4 sets	EA	77	1955	8	103	43	8	723
RVP	4068	55	1395	40	480	68	1725	63	1600	34	865	4 sets	EAX	80	2032	8	119	55	9	870
RVP	1969	60	1525	19	610	69	1755	64	1625	13	330	2 sets	EA	81	2057	4	57	46	8	392
RVP	2469	60	1525	24	710	69	1750	64	1625	18	455	3 sets	EA	81	2057	6	73	46	8	549
RVP	2871	60	1525	28	840	71	1800	66	1675	22	560	3 sets	EAX	83	2108	6	87	57	9	664
RVP	3371	60	1525	33	915	71	1800	66	1675	27	685	4 sets	EA	83	2108	8	103	47	8	748
RVP	3671	60	1525	36	1115	71	1800	66	1675	30	760	4 sets	EAX	83	2108	8	112	57	9	866
RVP	4471	60	1525	44	1065	71	1800	66	1675	38	965	5 sets	EA	83	2108	10	137	47	8	952
RVP	4273	60	1525	42	1065	73	1850	68	1720	36	915	5 sets	EAX	85	2159	10	134	59	9	1073
RVP	1984	72	1830	19	480	84	2135	78	1975	13	330	2 sets	EAX	96	2438	4	70	66	9	509
RVP	2886	72	1830	28	710	86	2185	80	2030	22	560	3 sets	EAX	98	2489	6	106	68	9	772
RVP	3386	72	1830	33	840	86	2185	80	2030	27	685	4 sets	EAX	98	2489	8	124	68	9	976
RVP	3786	72	1830	37	940	86	2185	80	2030	31	785	4 sets	EAX	98	2489	8	139	68	9	1017
RVP	2897	84	2135	28	710	97	2465	90	2285	22	560	3 sets	EAX	109	2768	6	119	75	9	850

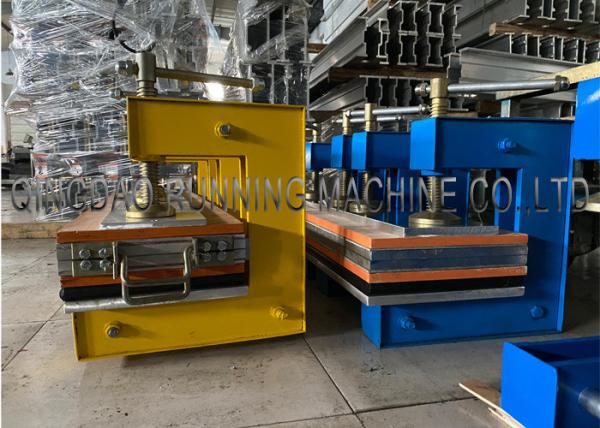

Portable PU Rubber Belt Vulcanizing Machine Hydraulic Press

Design Features of Rubber Belt Portable Vulcanizing Machine

Water pressure bag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa/2.0Mpa.
100 p.s.i. (7 kg/cm sq.) units mostly suitable for splicing fabric ply belting
200 p.s.i. (14 kg/cm sq.) units usually used to do steel cord conveyor belting
Max Belt width: from 650mm to 3000mm
Different heating platen size and combination.
Degree of the heating platen: 22 degree bias angle or 16 degree, 20 degree, rectangle and other degree is optional.
Power Voltage: 380V. 660V. 525V480V. 440V. 415V. 400V or 220V
Vulcanizing temperature:145℃ (adjustable 0~200℃)
Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 25 min, accords to different conditions, actually, normal conditions, is around 20 mins.
Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)

Portable PU Rubber Belt Vulcanizing Machine Hydraulic Press
