Aluminum Frame Style Vulcanizing Press For PE And Steel Belt

PRO Series Frame Vulcanizing Presses, 2-piece press, aluminum frame style, designed for quick and easy operation, easy to move to any desired splice position, lightweight and high work efficiency.

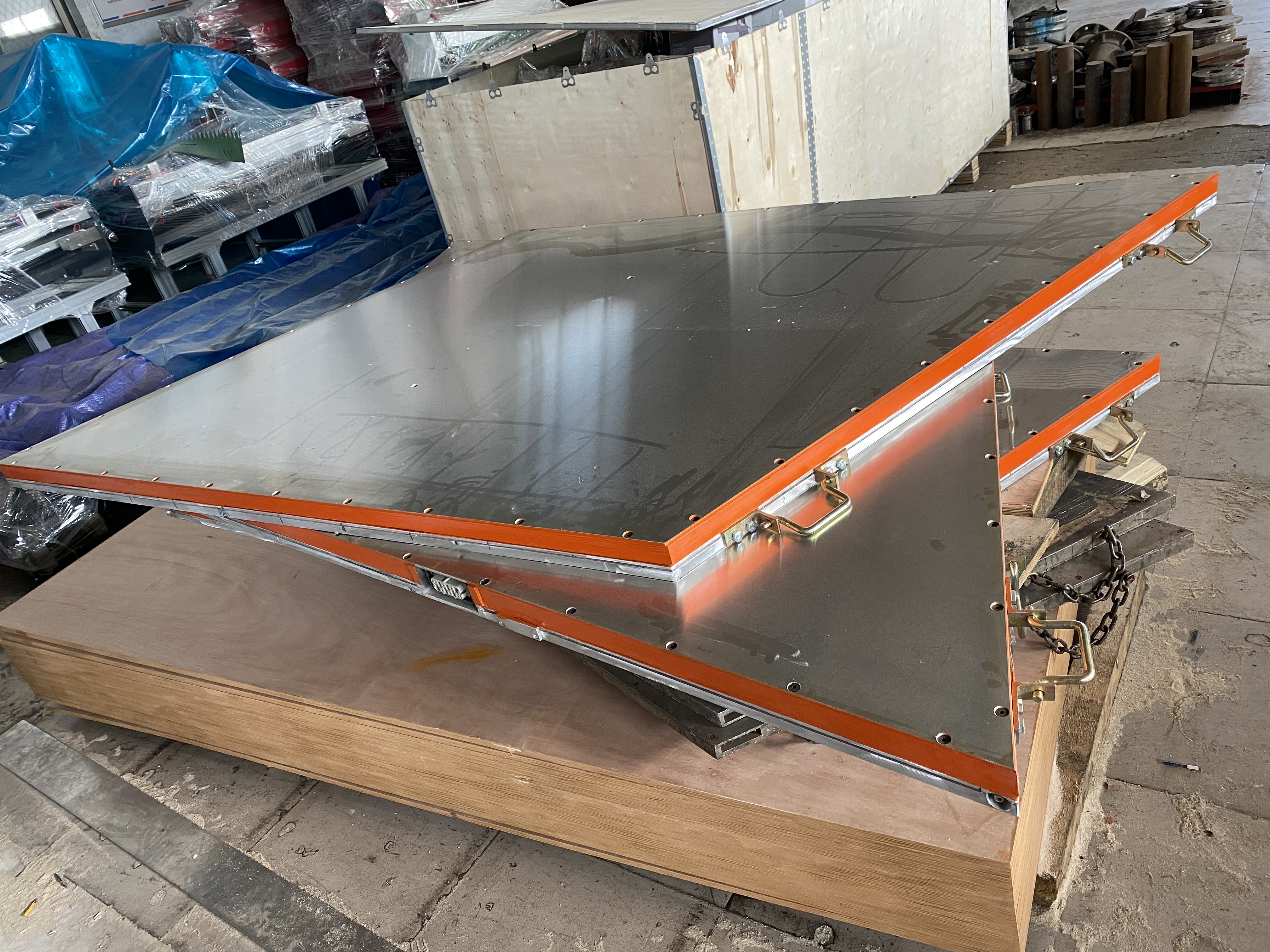

Two light and robust aluminium frames comprise upper and lower portions of the press. It’s equipped with two foldable handles on both ends of the upper frame, easy to move up and down. The control box feature dual temperature control, timer and indication system.

Parameters

FEATURES:

1. Operating pressure of 7 kg/cm2(100 psi).
2. Signature RUNNING GROUP"Pressure Bag" uniform pressure system.
3. Custom"Extruded Plank" cooling system within platens. ·
4. Platens built to order in either a rhombic or rectangular design.
5. Durable"Silicone Element"heating system, custom designed to voltage phase and cycle.
6. Can be aligned side-by-side for alonger splice area and easier handling.

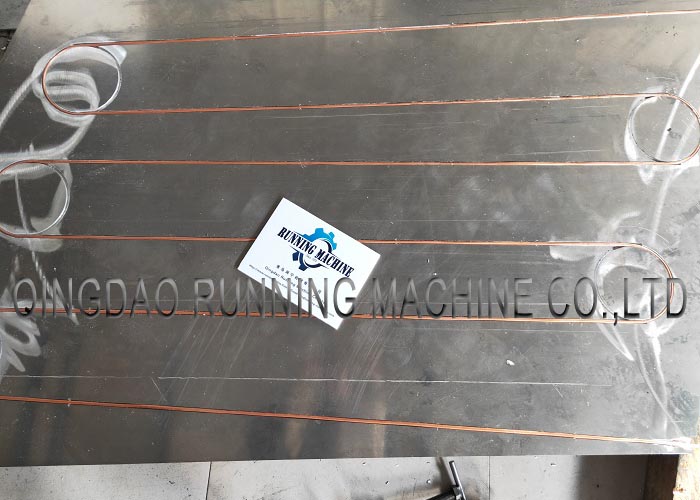

PLATENS Utilizes innovative RUNNING GROUP flexible platen constructed from extruded plank, silicone heating element and durable composite insulation Each platen contours to belt irregularities,ensuring uniform results Maximum temperature 163 ℃ (325 °F). ·Platens available in either a rhombic or rectangular design
	PRESSURE/COOLING · RUNNING GROUP inflatable pressure system, made from durable fabric-reinforced rubber ensures uniform pressure across the splice surface ●Quick integral water cooling incorporated in platen design

FRAME

· Two light and rugged aluminum frames comprise upper and lower portions of press
