Portable Hot Conveyor Belt Vulcanizing Machine Made Of Aluminum Alloy

Ask Lasest Price
Brand Name :	RUNNING
Model Number :	*ZLJ-1800870**
Certification :	ISO CE SGS
Price :	USD 8000
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	50 sets/M
Delivery Time :	5-8 works day

Add to Cart

Product Details
Company Profile

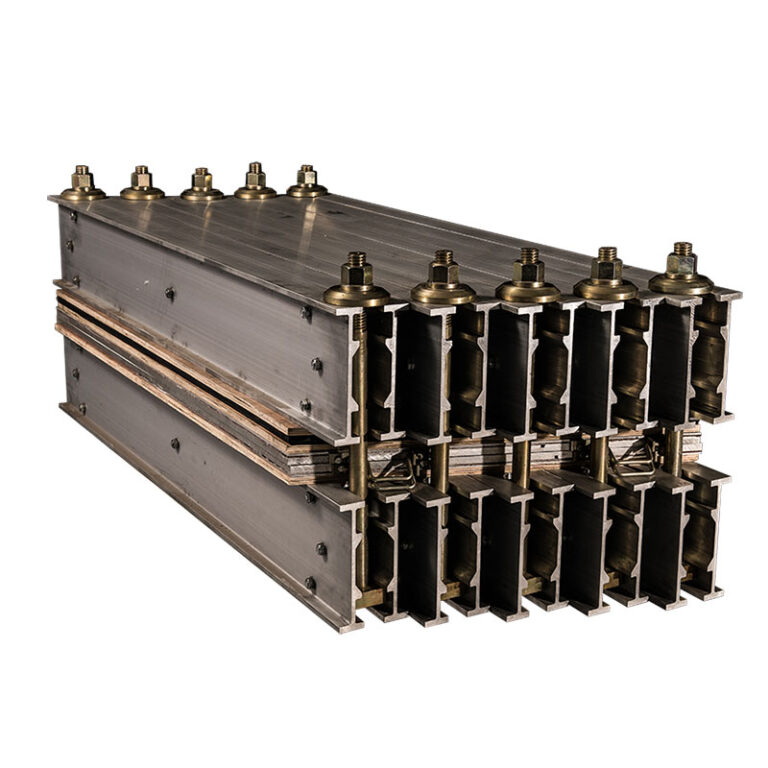

Portable Hot Conveyor Belt Vulcanizing Machine Made Of Aluminum Alloy

Portable Conveyor Belt Hot Vulcanizing Machine made of aluminum alloy

What’s ASVP-E series and what it can do: The ASVP-E sectional has uniform pressure bag and aluminum/steel bolt and high-grade aluminum platens and beams with high safety grade.

Portable Conveyor Belt Hot Vulcanizing Machine system designed to be portable and easy to set-up and remove from the site. We can manufacture to all sizes and pressure up to 1.8 Mpa or more required for different fabric belts and steel-cord belts.

Normal vulcanizer model sheet:

Specifications of ASVP series Belt Joint Vulcanizing Machine 100 PSI(7kg/cm sq.) units suitable for splicing steelcord conveyor belting
Model Number		Max Belt Width(in)		Platen Dimensions						Max Splice Length		Spanner Bars				Qty Bolt/Nut Assy.	Main Component Weights
		Max Belt Width(in)		A(mm)		B(mm)		C(mm)		Max Splice Length		QTY	Type	Length			Platen	Bar	Bolt/ Nut Assy.	Total Weight
		in	mm	in	mm	in	mm	in	mm	in	mm	QTY	Type	in	mm		kg	kg	kg	kg
ASVP	1930	24	610	19	480	30	760	28	705	13	330	2 sets	EA	42	1065	4	25	24	8	225
ASVP	1937	30	760	19	480	37	940	34	870	13	330	2 sets	EA	49	1245	4	31	28	8	255
ASVP	1943	36	915	19	480	43	1090	40	1015	13	330	2 sets	EA	55	1395	4	36	31	8	281
ASVP	2643	36	915	26	660	43	1090	40	1015	20	510	3 sets	EA	55	1397	6	49	31	8	405
ASVP	2843	36	915	28	710	43	1090	40	1015	22	560	3 sets	EA	55	1397	6	53	31	8	416
ASVP	3343	36	915	33	840	43	1090	40	1015	27	685	4 sets	EA	55	1397	8	62	31	8	522
ASVP	3743	36	915	37	940	43	1090	40	1015	31	785	4 sets	EA	55	1397	8	70	31	8	544
ASVP	1950	42	1065	19	480	50	1270	46	1175	13	330	2 sets	EA	62	1574	4	42	35	8	311

TECHNICAL PARAMETERS

Water pressure bag (also can use air pressure) Press for 100PSI, 200PSI surface pressure for textile and steel cord belts, Up to 1.8Mpa/2.0Mpa.
100 p.s.i.(7 kg/cm sq.) units mostly suitable for splicing fabric ply belting
200 p.s.i.(14 kg/cm sq.) units usually used to do steel cord conveyor belting
Max Belt width: from 650mm to3000mm
Different heating platen size and combination.
Degree of the heating platen: 22 degree bias angle or 16 degree, 20 degree, rectangle and other degree is optional.
Power Voltage: 380V. 660V. 525V480V. 440V. 415V. 400V or 220V
Vulcanizing temperature:145℃ (adjustable 0~200℃)
Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 25 min, accords to different conditions, actually, normal conditions, is around 20 mins.
Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)

When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table

Max belt width
Heating platen length (or pls supply belt manufacturer’s recommended splice length)
What kind of belt, light duty belts or heavy duty belts, belt model No.
Working Voltage
Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steel cord belts is 1.4Mpa)
Degree of heating platen (standard will be 22 degree)

A=Length of platen along belt

B=Width of platen across the belt on the bias

C=Right angle dimension across the belt, plus edge overlap

D=Bias angle

E=Max Splice length

Note:

Specifications are subject to change without notice;
Build-in cooling standard on all units;
Total weights include electrical control panel, cable set and set up templates for all models;
200 PSI models include fluid pressure pump and reservoir unit Model HPP20-4(mandatory for operating pressure above 100PSI/7 kg/cm sq);
Temperature adjustable between 0-199deg.C;
Sectional vulcanizers are built on a 22 degree bias, 16/20 or other degree are optional;
Custom sizes, rectangular configurations and multiple platen arrangements available on request.

Main Componets:
Aluminum Frame (Spanner Bars), made of high quality aluminum are engineered for any belt width or operating pressure. From EA up to E380.
