TECHNICAL PARAMETERS OF RUBBER CONVEYOR BELT VULCANIZER
- Waterbag (also can use air pressure) Press for 200PSI etc. surface
pressure for textile and steel cord belts, Up to 1.8Mpa.
- 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord
conveyor belting
- Max Belt width: from 650mm to 3000mm
- Different heating platen size and combination.
- Degree of the heating platen: 22 degree bias angle or 17 degree, 20
degree, rectangle and other degree is optional.
- Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V
- Vulcanizing temperature:145ºC (adjustable 0~200ºC)
- Temperature-rising time (from normal temperature to vulcanizing
temperature): no more than 50 min, accords to different conditions,
actually, normal conditions, is around 25~30 mins.
- Improved cooling system, when use pressure pump for cooling,
cooling time only 5mins (cooling from 145 to 75 degrees)
HEATING PLATEN OF RUBBER CONVEYOR BELT VULCANIZER
Custom extruded plank, silicone heating elements (up to
180°C/356°F), and durable composite insulating packaging are used
to construct a flexible platen that contours to belt
irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about
145°C).
The flush "quick connect" make smooth profile. Recessed power
connections are sealed for moisture resistance.
COOLING SYSTEM OF RUBBER CONVEYOR BELT VULCANIZER (Option Available)
Custom "Extruded Plank" cooling system within platens is made by
several cuprum pipelines, it only takes about 20mins to drop the
temperature down to 60°C.
PRESSURE PUMP OF RUBBER CONVEYOR BELT VULCANIZER
Automatic mute pressure pump own the features as smaller size,
lighter weight and high impact-resistance. Compared with the manual
pump, the operating pressure can be 23kg/cm2 (2.3MPa).
*********************************************************
When order, pls supply below information, our engineer will make a
solution for you, or pls choose one model from bottom traditional
sizes table
- Max belt width
- Heating platen length (or pls supply belt manufacturer's recommended splice length)
- What kind of belt, light duty belts or heavy duty belts
- Working Voltage
- Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is
1.2Mpa, for steelcord belts is 1.4Mpa)
- Degree of heating platen

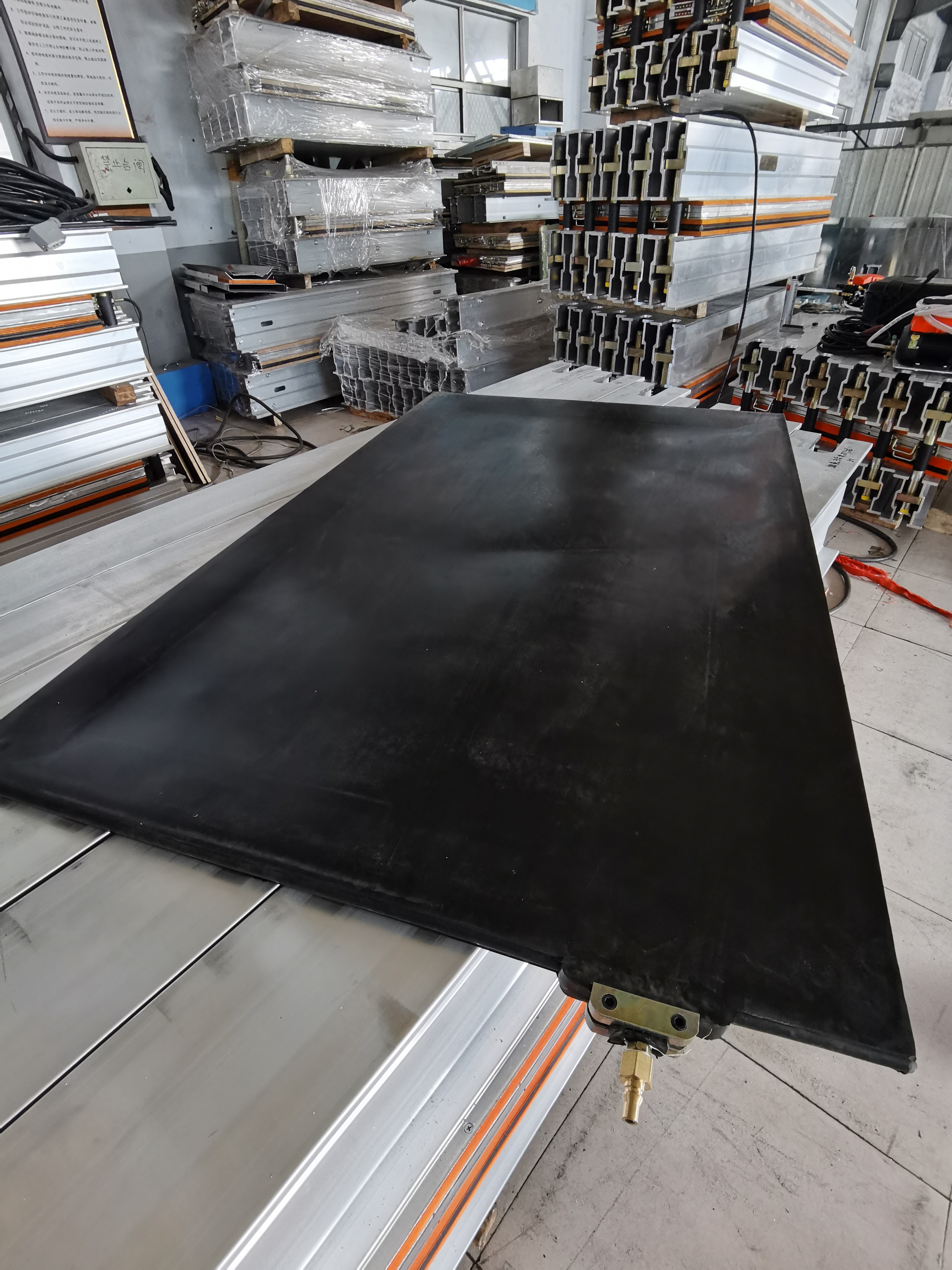

Water Cooling Rubber Conveyor Belt Vulcanizer photo
