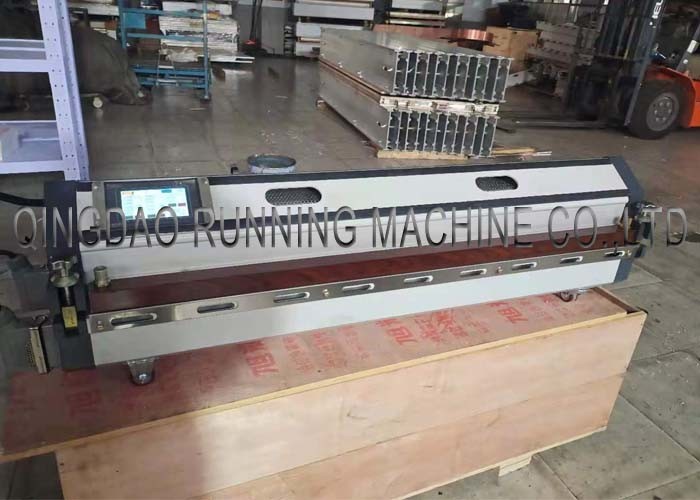

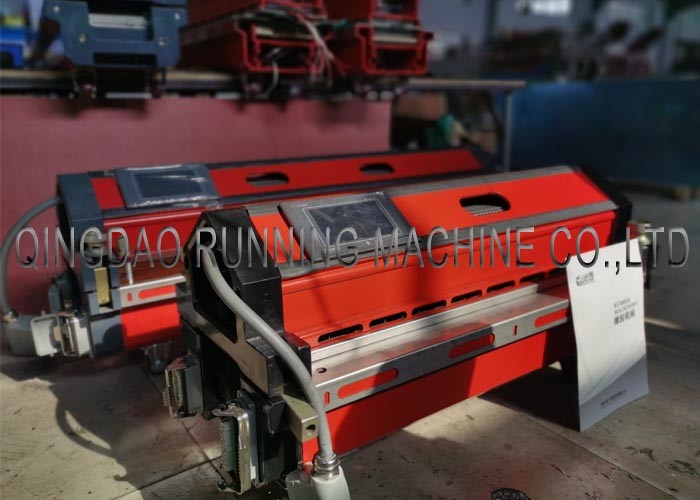

Air Cooling Type PU Conveyor Belt Hot Jointing Machine 1800mm width

Application & Brife introduction:

1. Used for splicing PVC PU PVK Printing Blankets belt etc. thermoplastic belt materials
2. Portable Conveyor Belt Splice Press, light weight and with flight case as standard packing, is easily removed to any where for job site use.
3. Fast Splicing: include heating time and cooling time, no more than 12min.
4. Temperature up to 200 ºC (392 ºF)
5. All in one design: The press has an integrated air-cooling system and also air compressor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or additional air compressor.
6. Easy to use and assemble.
7. Light weight aluminum construction
8. Reliable and automatic Temperature Control with time control.
9. Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.
10. Voltage: 220V or 380V, if special voltage pls freely to inform us, like 110V (only under 1200mm, include 1200) etc.
11. If used in workshop, pneumatic lifting steel stand is optional.

Machine specification of PU conveyor belt jointing machine:

Functions of PU conveyor belt jointing machine:

• Splice pressure is applied by an internal compressor, max. 2 bar (28 psi)

• Heats up to a splice temperature of max. 200°C (392°F)

• Keeps it at the splice temperature (adjustable dwell time)

• Cools down to the cooling temperature (safe temperature to take the belt out)

• For thicker belts a preheat temperature and preheat dwell time can be applied

• The bottom heating can be set lower or higher than the top heating

• The splice surface is 130 mm ; the heated zone is 110 mm.

Introduction of PU conveyor belt jointing machine:

If the belt is relatively thick a problem might occur where the outside of the belt is at the splicing temperature too long, waiting for the inside to reach the required temperature. Molten material might flow away or discolor and fabrics might shrink. To avoid this problem from happening, the preheat option can be used. This option heats the belt up (outside and inside) to a temperature just below the melting temperature. After the preheat stage, the inside splice temperature can be reached much quicker, minimizing the risk for unwanted flow of material, discoloring or fabric shrinkage.

The reading of the display relates to the top temperature of the press. If more or less heat is required at the bottom of the belt, the “bottom heat factor” can be used. Please note that this factor relates to a plus or minus amount of heat (%), not to a specific temperature.
