Hydraulic Spot Repair Conveyor Belt Repairing Machine Vulcanizing Press 1.1Kw

Ask Lasest Price
Brand Name :	RUNNING
Model Number :	YXL
Certification :	CE,SGS
Price :	$2,000 ~ $3,000 / set
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	50000sets/year
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

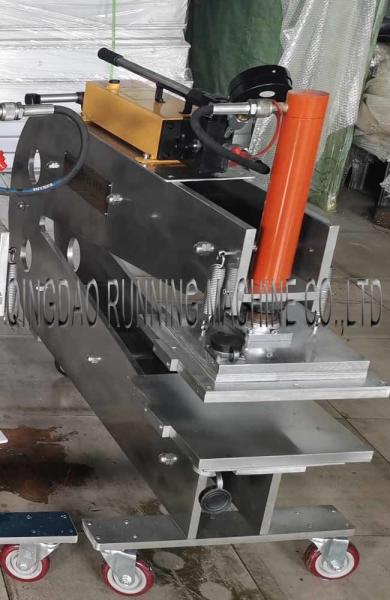

Hydraulic Spot Repair Conveyor Belt Repairing Machine Vulcanizing Press 1.1Kw

Conveyor Belt Hydraulic Spot Repair Splice Vulcanizing Press Machine

Specification

Special requirements: Voltage, Pressure, Temperature, Heating platen dimension etc. we can make special for you, if you have any requirements.

Application method:

1. Transfer machine to the repair site.
2. Fill glue in the damaged areas that need to be repaired (see the
adhesive part in the vulcanization process of the belt joints, or
the demonstration by our staff when the equipment is being tested).
3. Place the frame under the belt and align it with the damaged
area.
4. Place the down heating plate just below the damaged area of the
belt and then place the upper frame.
5. Press the hydraulic lever until it reaches enough pressure
level.
6. Get the first power wire well connected to the electrical
control box. Connect the second wire with the electric control box
and the upper and down plates.
Note that it corresponds to the sign on the electric control box.
7. Turn on the electric control box and start the vulcanizing
repair process.

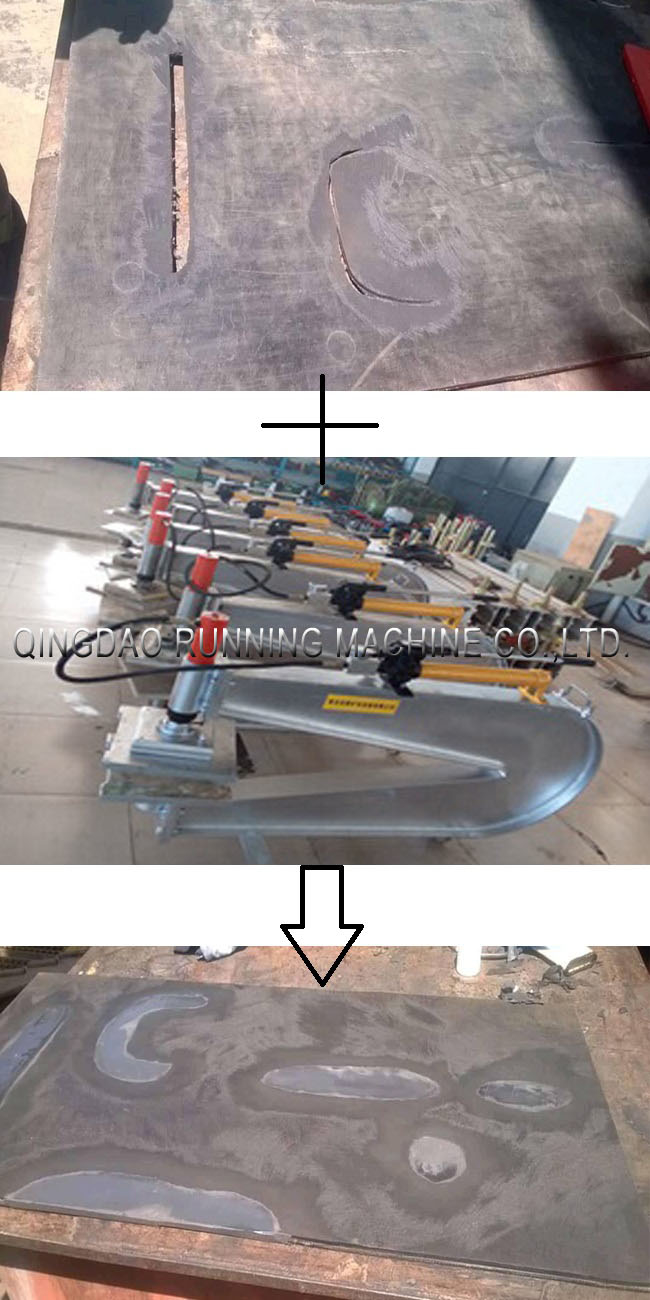

Movable Lightweight Conveyor Belt Cracking Repairing Machine 350 * 350 0

Features

1. spot repair vulcanizer ready for use for the repair of conveyor belts
2. particularly easy-to-transport due to the low weight of the single parts
3. transportation by only one person is possible, as there are only two components

On Site Splicing Hot Vulcanizing for conveyor belt

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.

Customer Vistiting

Technical Parameters (Reference)
