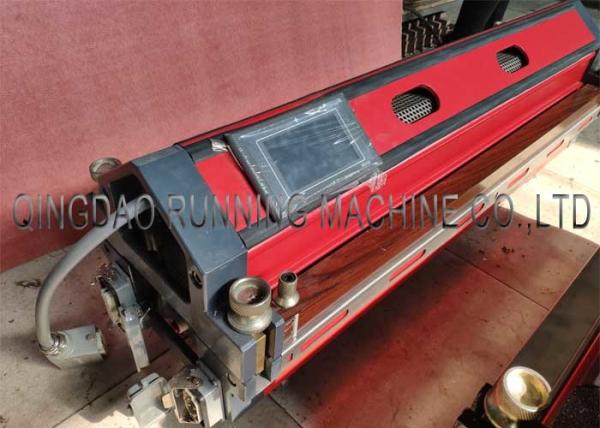

1800mm Air Cooled PVC/PU Conveyor Belt Joint Vulcanizing Machine
Application of Conveyor Belt Jointing Machine
RUNNING PA series ALL-IN-ONE air cooled press has all components
integrated into the tool, allowing a user to simply plug it into
electricity and it is ready for use. Fast and Portable Splicing,
can be bring to anywhere for working easily. Used for PVC PU PVK
belt and thermoplastic belt materials etc.
Specifications of Conveyor Belt Jointing Machine
• RUNNING PA series air cooled press,have different models from 300mm to 2100mm.
• Used for PVC/PU/PVK Belt and thermoplastic belt materials etc.
• Portable splice press,light weight and with flight case as standard packing,easily removed to
anywhere for on-site joint work.
• Fast Splicing:Heating and cooling time:no more than 12mins.
• All-in-one design:Integrated air cooling system and also air compressor inside.To
ensure that belt is quickly cooled down and auto press on,without water pump or additional air
compressor.The air compressor made in Germany.
• Reliable and automatic temperature control with time controlling(in one meter,also you can sent by
yourself).High quality Euro thermistor.The temperature controller
from Eurothern,made in UK.
• Temperature controller(EUROTHERM), time controller(EUROTHERM) and
air pressure(SMC) controller are imported
Our advantages:
1. The 2016 PA splice press for joint thermoplastic conveyor belt.
2. Perfect model to splice on site, avoiding additional items such
as control boxes, cooling tanks or hoses.
3. By means of this concept, the splice is made easier and in a
more comfortable way.
4. The joint cycles are really fast.
Technical Parameter of Conveyor Belt Jointing Machine
| Model | ACP1800 |
| Effective length | 1829mm |
| Effective width | 130 mm |
| Weight lower part | 47.5 kg |
| Weight upper part | 63.3 kg |
| Total weight | 121 kg |
| Overall height | 255mm |
| Max. pressure | 2 Bar |
| Max. temperature | 200 ºC |
| Packaging list(L x W x H) | 2130*450*520mm |
| Gross weight | 180kg |
Delivery
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tiger,we will use pe film for packing or pack it according to
customers special request.
