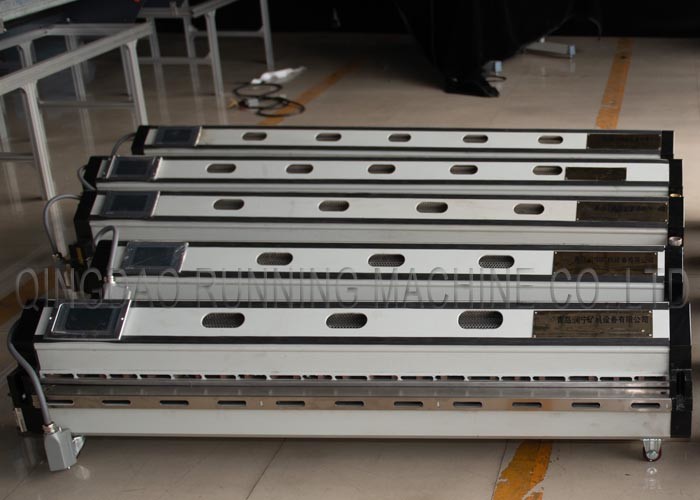

Lightweight Aluminum Structure 1500mm PU Conveyor Belt Jointing Machine

Application & Brife introduction:

The PU conveyor belt jointing machine is an all-in-one solution for splicing thermoplastic conveyor belts (e.g. PVC polyurethane)

No external control box, air pump, or water cooling tank are required.

The presses are provided with electric heating and built in air cooling. The splice process runs fully automated.

• Splice pressure is applied by an internal compressor, max. 2 bar (28 psi)

• Heats up to a splice temperature of max. 200°C (392°F)

• Keeps it at the splice temperature (adjustable dwell time)

• Cools down to the cooling temperature (safe temperature to take the belt out)

• For thicker belts a preheat temperature and preheat dwell time can be applied

• The bottom heating can be set lower or higher than the top heating

• The splice surface is 130 mm ; the heated zone is 110 mm.

Machine specification of PU conveyor belt jointing machine:

Functions of PU conveyor belt jointing machine:

The PA series air cooled jointing machine, have different models for width from 24″ (300 mm) to 84″ (2100 mm)

1. It takes 5 minutes to heat up to 172℃,and takes 3 minutes to cool down to 60℃.temperature error below 2℃,

completely meets the requirement of the belt joint.

2. Balloon adding pressure:0-3.0kg adjustable.

3. Intelligent digital display control: automatic heating, automatic temperature control, automatically cut off power supply.

4. Pump water pump, use conveniently;

5. Two machined stainless platen, the beams are firm, durable and no distortion.

Introduction of PU conveyor belt jointing machine:

Shipping package of PU conveyor belt jointing machine:

Other related machines / tools for your choice:

QINGDAO RUNNING MACHINE CO.,LTD has established the leading position in the industry.The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.

In order to improve vulcanization quality,we developed and produced our core products:Rubber Pressure Bag and Integrated Rubber Heating Film. There are R&D center as well as quality inspection center in the company carying out strict product liability and quality control svstem .

We can provide our clients the best technical solution based on demands.With excellent quality and service, we built a firm market not only in more than 30 provinces nationwide but also in Southeast Asia, Middle East, Africa,Australia and South America etc.
