Portable Industrial Rubber Conveyor Belt Vulcanizing Press Machine
Characteristic features:
- two-piece aluminium frame construction
- quick assembly and disassembly
- Flexible rubber “Pressure Bag” uniform pressure system
- sturdy aramid reinforced pressure bag
- electronic temperature control
- adjustable temperature from 100 up to 170° C /212 - 338 ° F)
- surface pressure up to max. 70N/cm² (100 psi)
- rapid heat up and cool down time
- heating plates with integrated channels for water cooling
- multiple units can be used side by side for longer splice lengths
Application of rubber belt vulcanizer :
1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot
vulcanized belt splicing.
2. It is designed to use as an inter-core cord rubber replacement
material in splicing steel cord conveyor belts or a tie gum in
fabric belts.
3. The material is designed to bond to cured intercore rubber and
wire cords in all standard grade steel cord conveyor belts, as well
as fabric belt cured skim rubber and general bond improvement
material for general grade fabric conveyor belts.
Technical Parameters:
| Model | Belt Width (mm) | Power(kw) | Dimensions (L*W*H mm) | Weight(kg) | Single Piece Weight(kg) |
|
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198
|
* Vulcanizing temperature: 145ºC (adjustable 0~200ºC)
* Temperature-rising time (from normal temp to vulcanizing temp):≤50 mins(around 25~30 mins normally)
* Improved cooling system: using pressure pump for cooling:only 5mins (cooling from 145 to 75 degrees)
* Belt width: from 650mm to 3000mm 200PSI Almex alike Uniform Pressure Bag for Conveyor Belt Press
* Degree of the heating platen:22 °/17 °/ 20 ° (rectangle and other
degree is optional)
* Waterbag/ air pressure Press for 100PSI, 200PSI etc.
* Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
* 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply
belting
* 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord
conveyor belting
* Customization/OEM:Different heating platen size and combination
Portable Water-Cooled Rubber Belt Vulcanizing Machine and heating
plates with silicone heating mats have newly been developed and
distributed by RUNNING AMCHINE CO., Characterized by highest
quality features and application-oriented design, they are suitable
for splicing of fabric- and steel cord conveyer belts.
Since 2004, RUNNING MACHINE has developed the “Pressure Bag”
uniform pressure system, which is an innovation of outdated heavy
press bags. It is 4 times lighter than the outdated pressure bag.
A whole piece of vulcanized rubber is used for sealing, isolation,
rust prevention, without any splicing area, ensuring safety during
the operation.
The pressure bag can be fully expanded in one time to ensure that
the uniform pressure reaches 3.0MPa, which fully meets the
requirements of belt vulcanization.
For outdated press bags, the thickness of the press bag frame is
only 2cm instead of 5cm, which increases the pressure area.

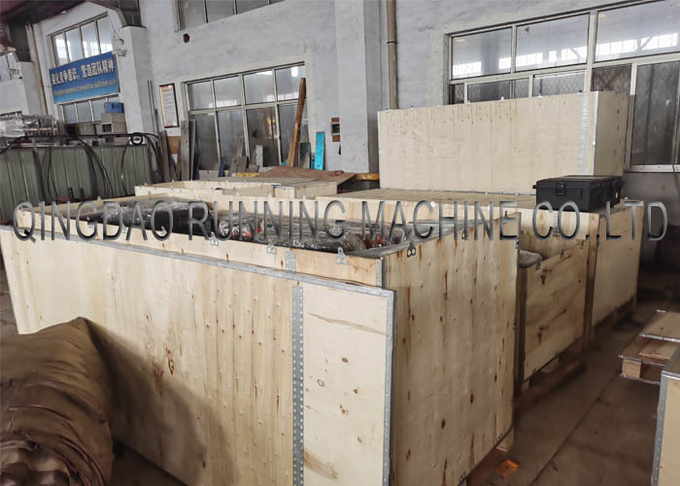

Package of rubber belt vulcanizer :
