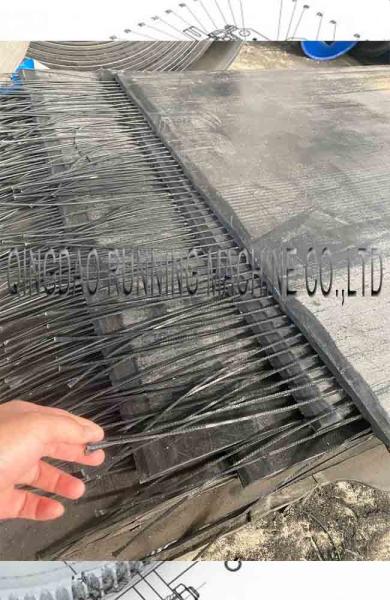

Heavy Duty Conveyor Belt Vulcaniser Steel Cord Conveyor Belt Splicing Equipment

RUNNING Vulcanizing machine offer Conveyor Belt Splicing Equipment designed for trouble-free operation in the harshest conditions. Conveyor Belt Splicing Equipment is easy to set-up and operate.Conveyor Belt Splicing Equipments are built to provide uniform heating and pressure accross the entire splice area, with heating up to 180C and specific pressure up to 14kg/cm2. Conveyor Belt Splicing Equipment’s quick heating and Integrated Cooling Platens enable short splicing cycles cutting downtime. Conveyor Belt Splicing Equipment are designed to be used stand-alone or in combination with other RUNNING presses.

Technical parameters

We can customize variousConveyor Belt Splicing Equipment for customers.

Including voltage and phase, the board can be divided into two different size boards, according to your requirements. This way you can splice different belt widths with one press.

All you need to do is tell us the width of the belt, the splicing length, and the material of the belt you want to splice. We will find Conveyor Belt Splicing Equipment that best suits your requirements.

Advantages of conveyor belt hot vulcanization joint method

Conveyor Belt Splicing Equipment has proved to be the most ideal joint method in many years of actual combat, which can ensure high joint efficiency, and is also very stable. The joint life is also very long and easy to master.

Conveyor Belt Splicing Equipment is equivalent to 60%-80% of the strength of the conveyor belt itself. ( Jointing with cold viscose is equivalent to 40%-55% of the strength of the conveyor belt itself; The buckle (mechanical joint) connection is only 28%-45%.)

Preparation before vulcanization

1. Check the site and choose a place that is convenient for transportation as the work place

2. Vulcanization site requirements: flat, wide, clean, dust-free, dry air, water source, adequate lighting

3. Remove more than 2 sets of upper roller brackets at the vulcanization operation site (subject to sufficient space to place the vulcanizer)

4. Both ends of the belt are tightened with an electric hoist and fixed with a splint.

5. Place the base (beam), pressure plate, and lower heating plate of the vulcanizer on the conveyor frame in order, and straighten it according to the angle of the heating plate

6. Put both ends of the fixed belt on the lower heating plate, and then start the operation

When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table

• Max belt width
• Heating platen length (or pls supply belt manufacturer’s recommended splice length)
• What kind of belt, light duty belts or heavy duty belts, belt model No.
• Working Voltage
• Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steel cord belts is 1.4Mpa)
• Degree of heating platen (standard will be 22 degree)

Normal vulcanizer model sheet:


A= Splice Length
B= Bet Width
C=Length of platen along the belt
D= Width of platen
measured square to beltline
E= Bias Ange
F=Width of platen along the belt on bias

Usually we provide the packing list as following:

QINGDAO RUNNING MACHINE CO.,LTD has established the leading position in the industry.The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.

In order to improve vulcanization quality,we developed and produced our core products:Rubber Pressure Bag and Integrated Rubber Heating Film. There are R&D center as well as quality inspection center in the company carying out strict product liability and quality control svstem .

We can provide our clients the best technical solution based on demands.With excellent quality and service, we built a firm market not only in more than 30 provinces nationwide but also in Southeast Asia, Middle East, Africa,Australia and South America etc.
