Water Cooling Conveyor Belt Vulcanising Press Hot Splicing Machine
NO.1 INTRODUCTION OF CONVEYOR BELT VULCANIZER
Conveyor belt vulcanizer, also called conveyor belt vulcanizing
press or belt vulcanizing press machine. It's vulcanize equipment
and tools for repairing & splicing of conveyor belt. It suits for
various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel
cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable
machine, which is widely used in the field of metallurgy, mining,
power plants, ports, building materials, cement, coal mine,
chemical industry, etc. Heating plates are available for rhombic,
rectangular and modular type (two or more sets of heating plates
together).
NO.2 TECHNICAL PARAMETERS
1. Vulcanization pressure 1.0-2.0 MPa;
2. Vulcanization temperature 145°C;
3. Difference in surface temperature of vulcanized plate ± 2°C;
4. Heating up time ( at normal temperature to 145°C )<20
minutes;
5. Voltage 220V/ 380V/415V/440V/480V/550V/660V, 50/60HZ, 3PHASES;
6. Temperature adjustment range 0 to 199°C;
7. Timer adjustment range 0 to 99 minutes;
Machine specification of Conveyor Belt Splicing Tools
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Our Advantages:
- Control Box – The VUL-CON Switchgear Box is the most advanced
control system in the world. Incorporating controls for 2 platens.
Splice data can be stored and recalled through the built-in data
logger.
- Heating Element – Silicone Rubber heaters with wire-wound elements
provide excellent physical strength capable of withstanding
repeated flexing without compromising the life and performance of
the heater.
- Robust Rubber Pressure Bag – with aramid reinforcement distributes
uniform pressure and is available in 22° bias and can be custom
made upon request.

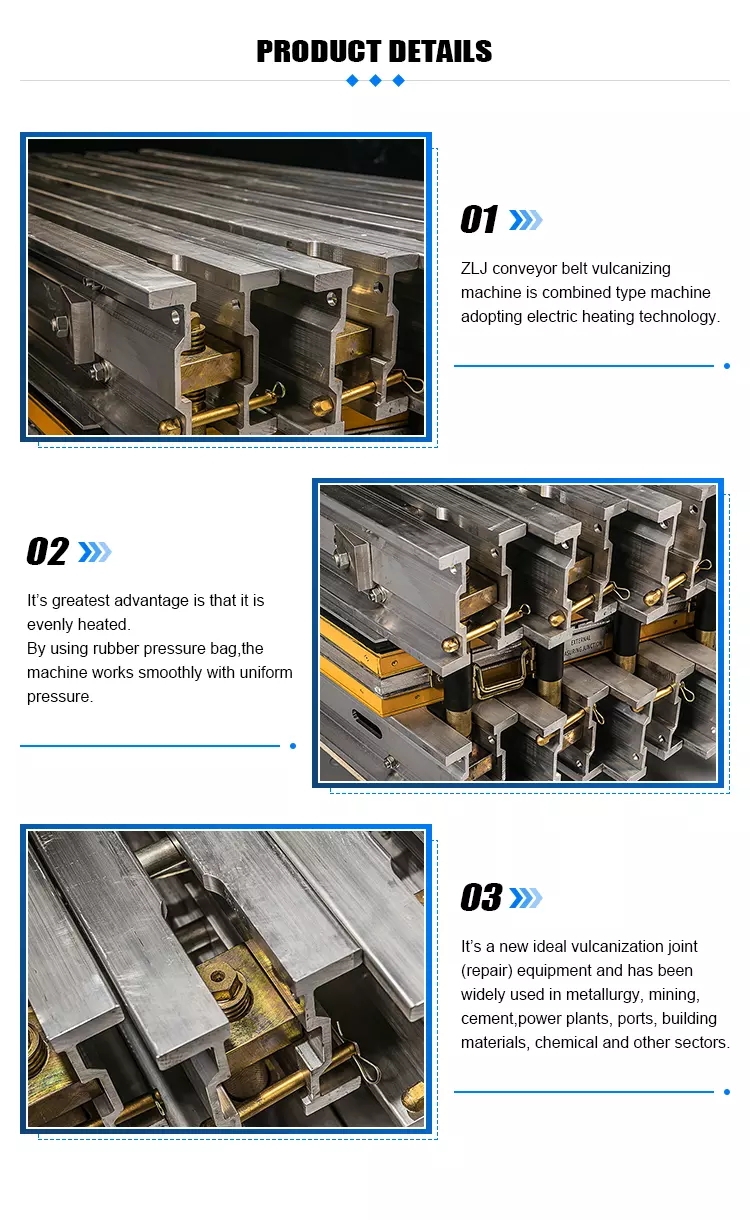

Platen--Each sectional press is constructed with aluminum flexible
platens that contour to the conveyor belt surface during splicing
Platens are individually designed and include extruded
plank,silicone heating elements (up to 163 °C/325 °F), and durable
composite insulating packaging Sturdy electrical connectors and
moisture-proof latch enhance press durability
- Platen Cables – Connects to the temperature controller and
vulcanizing platens.
Package of Conveyor Belt Splicing Tools:
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tiger,we will use pe film for packing or pack it according to
customers special request.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
