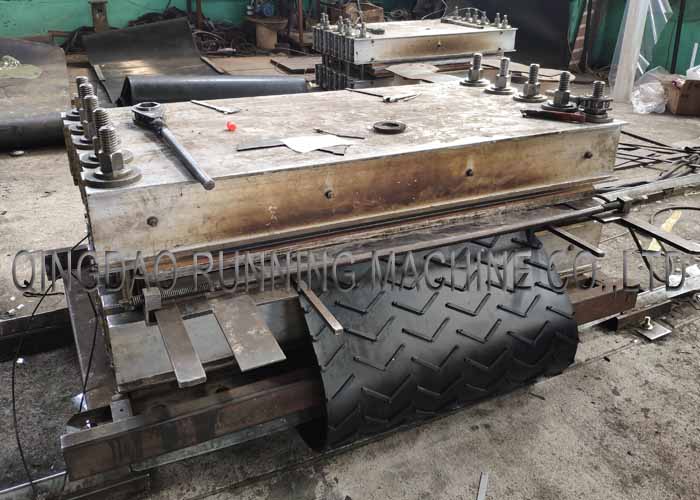

Frame Style Electrical Heating Steel Cord Conveyor Belt Splicing
Machine
Why Hot Vulcanizing Is A Better Method for Splicing Your Conveyor
Belt?
Conveyer belt repairs can drive down productivity by taking your
operation offline. If you are unprepared for a breakdown, the race
to repair can be hectic and stressful. More importantly, a quality
and lasting repair is critical to stop further issues.
Hot vulcanizing is an excellent option for belt splicing and can be
used in a variety of fixes or new installations. Its benefits
include bond strength, longevity, and durability.
Method and Procedure of Conveyor Belt Splicing Machine
Hot vulcanizing is a method of repair that uses both heat and
pressure to join repair materials with compromised sections of the
belt. The belt must be cleaned and free of all oily, greasy
substances before starting.
Typically, the damaged portion of the belt is removed or trimmed
down, and a new section is bonded in its place using an adhesive
like glue or cement. Often, technicians will overuse the adhesive,
subscribing to an “if a little is good, then a lot is better”
approach, but that isn’t necessarily true. The belt is then cured
to bond the materials.
The hot vulcanizing method is ideal for cuts or tears, holes or
breakdowns between steel cords and fabric. It can be executed in
dusty environments and is suitable for all types of belts with
varying widths and thickness.
Machine specification of Conveyor Belt Splicing Tools:
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Packing list of Conveyor Belt Splicing Tools:
| Name | Amount |
| Host machine | 1 set |
| Ratchet wrench | 2 piece |
| Clamping device | 1 set |
| Electric control box | 1 set |
| Power cable | 1 root |
| Control cable | 2 root |
| Thermal resistance | 2 pieces |
| QL electric water pump | 1 set |
| SD Hand pressure pump (Optional) | 1 set |
| Pressure pipe | 2 root |
| Water cooling system (Optional) | 1 set |
Package of Conveyor Belt Splicing Tools:
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tiger,we will use pe film for packing or pack it according to
customers special request.
