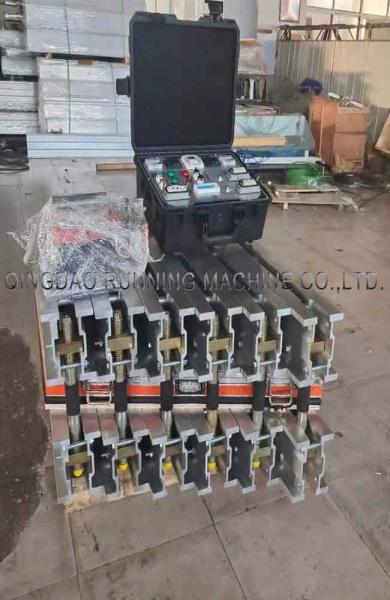

1400mm Assembled Conveyor Belt Water Pressurizing Jointing Splicer
Machine
Conveyor belt splicing is the process of joining together two
pieces of conveyor belt. Usually, this is done to either elongate
the original conveyor belt or to repair a torn or damaged conveyor
belt. Because there are so many industries in which conveyor
systems are employed, there are many types of conveyor belts and
components. In order to correctly splice a belt, the type of belt,
speed of conveyor belt system, materials traveling on the belt and
conveyor belt environment must be taken into account. A conveyor
belt splice is important in relation to the productivity of the
belt. So the conveyor belt splicing press machine is the most
important key.
Machine specification of conveyor belt jointing splicer:
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Simple introduction of conveyor belt jointing splicer
Our conveyor belt jointing splicer adopt rubber coated heating
blanket as heating element, it is made of resistance wire coated
rubber vulcanization. Compared with ordinary heating plate, it has
advantages of lightweight, better heating efficiency and so on.
For pressurizing system of conveyor belt splicing vulcanizing machine, we adopt water pump
+ Water pressure bag, the pressure bag is made of rubber, it has
advantages of lightweight, balanced pressure, lower leakage risk
and no rusting risk.
Package of conveyor belt splicing vulcanizing machine:
For more machine details pelase feel free to contact us!
There are lots of other conveyor belt machines for your choice!
