Advantages
The frame is made of high-strength aluminum alloy, it's small size,
portable,safe and reliable.
Features
1.Rapid heating: from 20 ℃ to 145 ℃ only takes 20-25 minutes;
2.Uniform temperature: heating plate maximum temperature and
minimum temperature difference does not exceed 3 ℃;
3. Rapid cooling: the heating plate from 145 ℃ to 65℃ cooling only
takes 15-20 minutes;
4.Durable High-strength durable aluminum alloy allows maximum
pressure 2.0 Mpa
Application method
1.Fill glue inthe damaged areas that need to be repaired(see the
adhesive part in the vulcanization process of the belt joints, or
the demonstration by our staff when the equipment is being tested);
2.Put the bottom plate, water pressure plate and lower heating
plate under the damaged areasof the belt according to the
structural diagram.
3.Put the upper heating plate,Insulation board on the damaged
areasof the belt.Align the top and bottom plates.
4. Lockedequidistantlythen tighten the bolts.

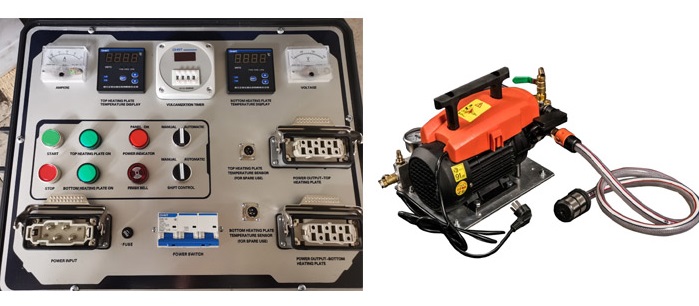

5.Get the first power wire well connected to electric control box.
Connect the second wire with electric control box and the upper and
down plates.Note that it corresponds to the signon the electric
control box.
6.Connect the end of the high pressure pipe with inlet opening of
water pressure plate. And connect another end of the high-pressure
pipe with water output hole of water pump.Switch on, add pressure
upon vulcanizing machine.
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tiger,we will use pe film for packing or pack it according to
customers special request.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and
technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast
Economic Zone. The nearest airport is Qingdao Liuting International
Airport. Kindly send flight information in advance, so that we can
pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine
explosion-proof conveyor belt vulcanizing machine, conveyor belt
repair machine, conveyor belt peeling machine and other relevant
equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control
department. We will make a strict inspectin before the machines
leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But
we can design different type machines according to the client's
requirement.
